1200mm Tyre Cutting Machine , Tire Cutter QDJ With Hydraulic System Stable

Name: 1200mm Tyre Cutting Machine Tire Cutter QDJ With Hydraulic System Stable
Brand: Xinda
Price: 1 USD

China 1200mm Tyre Cutting Machine , Tire Cutter QDJ With Hydraulic System Stable factory

Place of Origin : Jiangsu, China

Brand Name : Xinda

Model Number : QDJ-1200

Certification : CE CCC ISO CQC

Supply Ability : 10 Piece/Pieces per Month

Packaging Details : to be wrapped by plastic film and packed in a wooden case and make delivery in container

MOQ : 1 Piece/Pieces

Price : Negotiable

Type : Tire Machine

Condition : New

Tire Machine Type : Tire Recycling Machine

Voltage : 380V 50Hz

capacity(pcs/h) : 20~40

handling tire(mm) : <=1200

working pressure(mpa) : 12

Warranty : 1 year

After-sales Service Provided : Engineers available to service machinery overseas

Power(W) : 7.5KW

Weight : 2.5t

Port : Shanghai

Contact Now

1200mm Tyre Cutting Machine , Tire Cutter QDJ With Hydraulic System Stable

Introduction

The machines is used to cut all kinds of tires, including steel tire, fiber tire.

The tires need to be debeaded before cut into different size of rubber blocks.

It mainly consists of motor, rotating platform, rolling shelf, fixed blade shelf, cutting blade shelf, body frame, cylinder, hydraulic station and control cabinet, etc.

Structure and principle

The blades are made of high quality imported materials, wear- proof, heavy- duty and long life;
The rolling shelf and rotary platform make the operation easy and quick;
Automatic reposition function after each cut;
With blocking Pole to avoid tires sticking;
The hydraulic system adopts international advanced constant power variable plunger pump technology, low noise and high pressure and improved the stability and life of machine.

Technical Data

Model	900	1200
Capacity(Pieces/H)	10~30	20~40
Handling Tire(mm)	≤Φ1000	≤Φ1200
Motor Power(Kw)	5.5	7.5
Working Pressure(MPa)	8	12
Weight(T)	1.8	2.5

Product Tags:

rubber shredding machine

rubber tire shredder

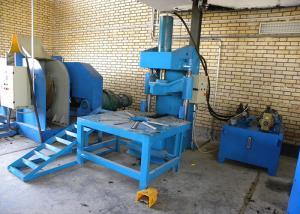

1200mm Tyre Cutting Machine , Tire Cutter QDJ With Hydraulic System Stable Images
